Business Process Management: The Symbiosis of Framework and Methodology – A Deep Dive into Process Architecture’s Strategic Role

Building on our foundational exploration of process mapping as a scaling solution and the interplay of methodologies, frameworks, and tools in quality management, it is essential to position Business Process Management (BPM) as a dynamic discipline that harmonizes structural guidance with actionable execution. At its core, BPM functions as both an adaptive enterprise framework and a prescriptive methodology, with process architecture as the linchpin connecting strategic vision to operational reality. By integrating insights from our prior examinations of process landscapes, SIPOC analysis, and systems thinking principles, we unravel how organizations can leverage BPM’s dual nature to drive scalable, sustainable transformation.

BPM’s Dual Identity: Structural Framework and Execution Pathway

Business Process Management operates simultaneously as a conceptual framework and an implementation methodology. As a framework, BPM establishes the scaffolding for understanding how processes interact across an organization. It provides standardized visualization templates like BPMN (Business Process Model and Notation) and value chain models, which create a common language for cross-functional collaboration. This framework perspective aligns with our earlier discussion of process landscapes, where hierarchical diagrams map core processes to supporting activities, ensuring alignment with strategic objectives.

Yet BPM transcends abstract structuring by embedding methodological rigor through its improvement lifecycle. This lifecycle-spanning scoping, modeling, automation, monitoring, and optimization-mirrors the DMAIC (Define, Measure, Analyze, Improve, Control) approach applied in quality initiatives. For instance, the “As-Is” modeling phase employs swimlane diagrams to expose inefficiencies in handoffs between departments, while the “To-Be” design phase leverages BPMN simulations to stress-test proposed workflows. These methodological steps operationalize the framework, transforming architectural blueprints into executable workflows.

The interdependence between BPM’s framework and methodology becomes evident in regulated industries like pharmaceuticals, where process architectures must align with ICH Q10 guidelines while methodological tools like change control protocols ensure compliance during execution. This duality enables organizations to maintain strategic coherence while adapting tactical approaches to shifting demands.

Process Architecture: The Structural Catalyst for Scalable Operations

Process architecture transcends mere process cataloging; it is the engineered backbone that ensures organizational processes collectively deliver value without redundancy or misalignment. Drawing from our exploration of process mapping as a scaling solution, effective architectures integrate three critical layers:

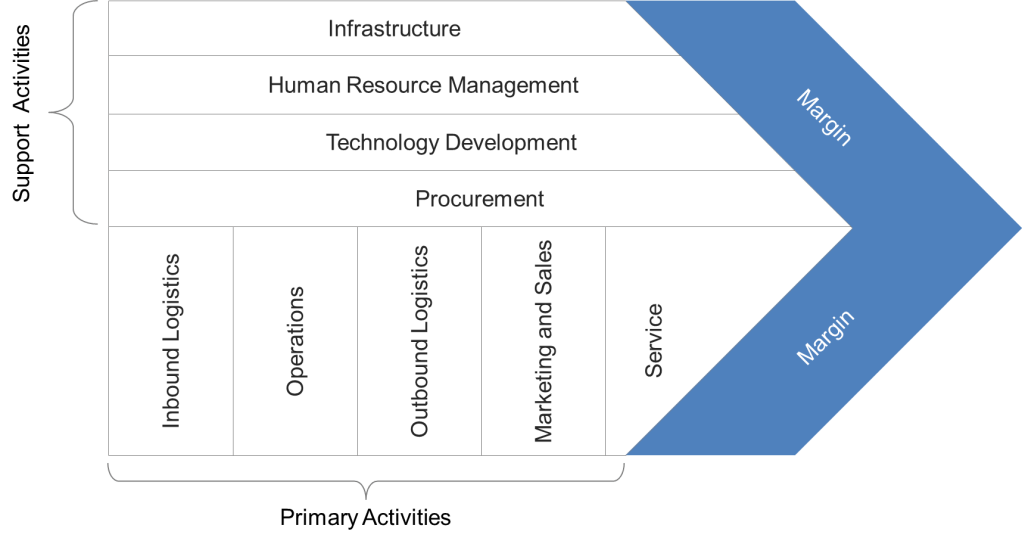

Strategic Layer: Anchored in Porter’s Value Chain, this layer distinguishes primary activities (e.g., manufacturing, service delivery) from support processes (e.g., HR, IT). By mapping these relationships through high-level process landscapes, leaders can identify which activities directly impact competitive advantage and allocate resources accordingly.
Operational Layer: Here, SIPOC (Supplier-Input-Process-Output-Customer) diagrams define process boundaries, clarifying dependencies between internal workflows and external stakeholders. For example, a SIPOC analysis in a clinical trial supply chain might reveal that delayed reagent shipments from suppliers (an input) directly impact patient enrollment timelines (an output), prompting architectural adjustments to buffer inventory.
Execution Layer: Detailed swimlane maps and BPMN models translate strategic and operational designs into actionable workflows. These tools, as discussed in our process mapping series, prevent scope creep by explicitly assigning responsibilities (via RACI matrices) and specifying decision gates.

Implementing Process Architecture: A Phased Approach
Developing a robust process architecture requires methodical execution:

Value Identification: Begin with value chain analysis to isolate core customer-facing processes. IGOE (Input-Guide-Output-Enabler) diagrams help validate whether each architectural component contributes to customer value. For instance, a pharmaceutical company might use IGOEs to verify that its clinical trial recruitment process directly enables faster drug development (a strategic objective).
Interdependency Mapping: Cross-functional workshops map handoffs between departments using BPMN collaboration diagrams. These sessions often reveal hidden dependencies-such as quality assurance’s role in batch release decisions-that SIPOC analyses might overlook. By embedding RACI matrices into these models, organizations clarify accountability at each process juncture.
Governance Integration: Architectural governance ties process ownership to performance metrics. A biotech firm, for example, might assign a Process Owner for drug substance manufacturing, linking their KPIs (e.g., yield rates) to architectural review cycles. This mirrors our earlier discussions about sustaining process maps through governance protocols.

Sustaining Architecture Through Dynamic Process Mapping

Process architectures are not static artifacts; they require ongoing refinement to remain relevant. Our prior analysis of process mapping as a scaling solution emphasized the need for iterative updates-a principle that applies equally to architectural maintenance:

Quarterly SIPOC Updates: Revisiting supplier and customer relationships ensures inputs/outputs align with evolving conditions. A medical device manufacturer might adjust its SIPOC for component sourcing post-pandemic, substituting single-source suppliers with regional alternatives to mitigate supply chain risks.
Biannual Landscape Revisions: Organizational restructuring (e.g., mergers, departmental realignments) necessitates value chain reassessment. When a diagnostics lab integrates AI-driven pathology services, its process landscape must expand to include data governance workflows, ensuring compliance with new digital health regulations.

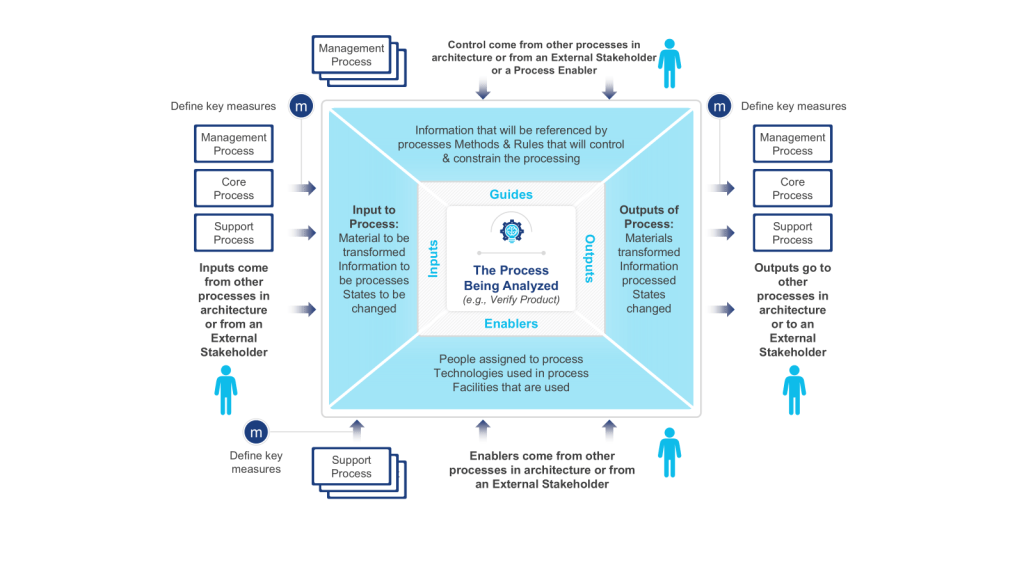

Trigger-Based IGOE Analysis: Regulatory changes or technological disruptions (e.g., adopting blockchain for data integrity) demand rapid architectural adjustments. IGOE diagrams help isolate which enablers (e.g., IT infrastructure) require upgrades to support updated processes.

This maintenance cycle transforms process architecture from a passive reference model into an active decision-making tool, echoing our findings on using process maps for real-time operational adjustments.

Unifying Framework and Methodology: A Blueprint for Execution

The true power of BPM emerges when its framework and methodology dimensions converge. Consider a contract manufacturing organization (CMO) implementing BPM to reduce batch release timelines:

Framework Application:
- A value chain model prioritizes “Batch Documentation Review” as a critical path activity.
- SIPOC analysis identifies regulatory agencies as key customers of the release process.
Methodological Execution:
- Swimlane mapping exposes delays in quality control’s document review step.
- BPMN simulation tests a revised workflow where parallel document checks replace sequential approvals.
- The organization automates checklist routing, cutting review time by 40%.
Architectural Evolution:
- Post-implementation, the process landscape is updated to reflect QC’s reduced role in routine reviews.
- KPIs shift from “Documents Reviewed per Day” to “Right-First-Time Documentation Rate,” aligning with strategic goals for quality culture.

Strategic Insights for Practitioners

Architecture-Informed Problem Solving

A truly effective approach to process improvement begins with a clear understanding of the organization’s process architecture. When inefficiencies arise, it is vital to anchor any improvement initiative within the specific architectural layer where the issue is most pronounced. This means that before launching a solution, leaders and process owners should first diagnose whether the root cause of the problem lies at the strategic, operational, or tactical level of the process architecture. For instance, if an organization is consistently experiencing raw material shortages, the problem is situated within the operational layer. Addressing this requires a granular analysis of the supply chain, often using tools like SIPOC (Supplier, Input, Process, Output, Customer) diagrams to map supplier relationships and identify bottlenecks or gaps. The solution might involve renegotiating contracts with suppliers, diversifying the supplier base, or enhancing inventory management systems. On the other hand, if the organization is facing declining customer satisfaction, the issue likely resides at the strategic layer. Here, improvement efforts should focus on value chain realignment-re-examining how the organization delivers value to its customers, possibly by redesigning service offerings, improving customer touchpoints, or shifting strategic priorities. By anchoring problem-solving efforts in the appropriate architectural layer, organizations ensure that solutions are both targeted and effective, addressing the true source of inefficiency rather than just its symptoms.

Methodology Customization

No two organizations are alike, and the maturity of an organization’s processes should dictate the methods and tools used for business process management (BPM). Methodology customization is about tailoring the BPM lifecycle to fit the unique needs, scale, and sophistication of the organization. For startups and rapidly growing companies, the priority is often speed and adaptability. In these environments, rapid prototyping with BPMN (Business Process Model and Notation) can be invaluable. By quickly modeling and testing critical workflows, startups can iterate and refine their processes in real time, responding nimbly to market feedback and operational challenges. Conversely, larger enterprises with established Quality Management Systems (QMS) and more complex process landscapes require a different approach. Here, the focus shifts to integrating advanced tools such as process mining, which enables organizations to monitor and analyze process performance at scale. Process mining provides data-driven insights into how processes actually operate, uncovering hidden inefficiencies and compliance risks that might not be visible through manual mapping alone. In these mature organizations, BPM methodologies are often more formalized, with structured governance, rigorous documentation, and continuous improvement cycles embedded in the organizational culture. The key is to match the BPM approach to the organization’s stage of development, ensuring that process management practices are both practical and impactful.

Metrics Harmonization

For process improvement initiatives to drive meaningful and sustainable change, it is essential to align key performance indicators (KPIs) with the organization’s process architecture. This harmonization ensures that metrics at each architectural layer support and inform one another, creating a cascade of accountability that links day-to-day operations with strategic objectives. At the strategic layer, high-level metrics such as Time-to-Patient provide a broad view of organizational performance and customer impact. These strategic KPIs should directly influence the targets set at the operational layer, such as Batch Record Completion Rates, On-Time Delivery, or Defect Rates. By establishing this alignment, organizations can ensure that improvements made at the operational level contribute directly to strategic goals, rather than operating in isolation. Our previous work on dashboards for scaling solutions illustrates how visualizing these relationships can enhance transparency and drive performance. Dashboards that integrate metrics from multiple architectural layers enable leaders to quickly identify where breakdowns are occurring and to trace their impact up and down the value chain. This integrated approach to metrics not only supports better decision-making but also fosters a culture of shared accountability, where every team understands how their performance contributes to the organization’s overall success.

Process Boundary

A process boundary is the clear definition of where a process starts and where it ends. It sets the parameters for what is included in the process and, just as importantly, what is not. The boundary marks the transition points: the initial trigger that sets the process in motion and the final output or result that signals its completion. By establishing these boundaries, organizations can identify the interactions and dependencies between processes, ensuring that each process is manageable, measurable, and aligned with objectives.

Why Are Process Boundaries Important?

Defining process boundaries is essential for several reasons:

Clarity and Focus: Boundaries help teams focus on the specific activities, roles, and outcomes that are relevant to the process at hand, avoiding unnecessary complexity and scope creep.
Effective Resource Allocation: With clear boundaries, organizations can allocate resources efficiently and prioritize improvement efforts where they will have the greatest impact.
Accountability: Boundaries clarify who is responsible for each part of the process, making it easier to assign ownership and measure performance.
Process Optimization: Well-defined boundaries make it possible to analyze, improve, and optimize processes systematically, as each process can be evaluated on its own terms before considering its interfaces with others.

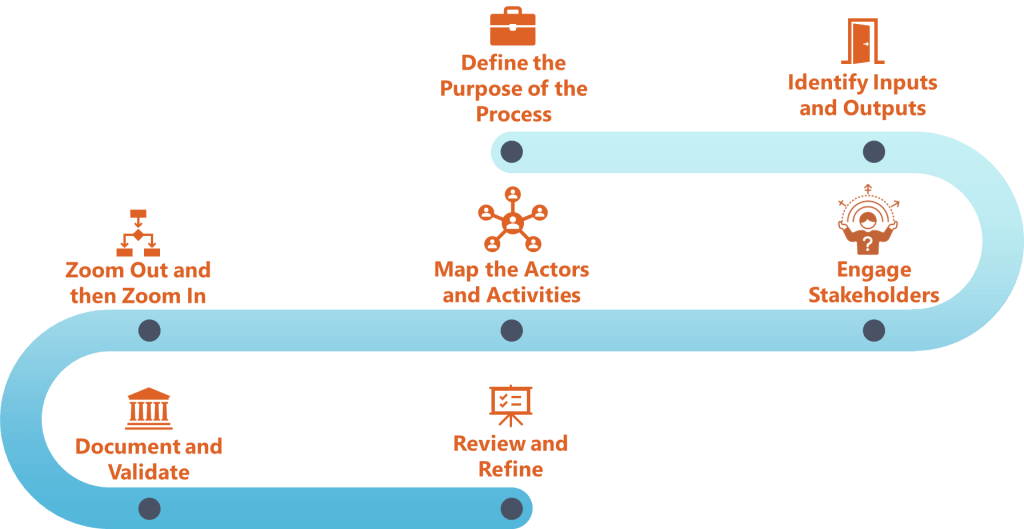

How to Determine Process Boundaries

Determining process boundaries is both an art and a science. Here’s a step-by-step approach, drawing on best practices from process mapping and business process analysis:

1. Define the Purpose of the Process

Before mapping, clarify the purpose of the process. What transformation or value does it deliver? For example, is the process about onboarding a new supplier, designing new process equipment, or resolving a non-conformance? Knowing the purpose helps you focus on the relevant start and end points.

2. Identify Inputs and Outputs

Every process transforms inputs into outputs. Clearly articulate what triggers the process (the input) and what constitutes its completion (the output). For instance, in a cake-baking process, the input might be “ingredients assembled,” and the output is “cake baked.” This transformation defines the process boundary.

3. Engage Stakeholders

Involve process owners, participants, and other stakeholders in boundary definition. They bring practical knowledge about where the process naturally starts and ends, as well as insights into handoffs and dependencies with other processes. Workshops, interviews, and surveys can be effective for gathering these perspectives.

4. Map the Actors and Activities

Decide which roles (“actors”) and activities are included within the boundary. Are you mapping only the activities of a laboratory analyst, or also those of supervisors, internal customers who need the results, or external partners? The level of detail should match your mapping purpose-whether you’re looking at a high-level overview or a detailed workflow.

5. Zoom Out, Then Zoom In

Start by zooming out to see the process as a whole in the context of the organization, then zoom in to set precise start and end points. This helps avoid missing upstream dependencies or downstream impacts that could affect the process’s effectiveness.

6. Document and Validate

Once you’ve defined the boundaries, document them clearly in your process map or supporting documentation. Validate your boundaries with stakeholders to ensure accuracy and buy-in. This step helps prevent misunderstandings and ensures the process map will be useful for analysis and improvement.

7. Review and Refine

Process boundaries are not set in stone. As the organization evolves or as you learn more through process analysis, revisit and adjust boundaries as needed to reflect changes in scope, objectives, or business environment.

Common Pitfalls and How to Avoid Them

Scope Creep: Avoid letting the process map expand beyond its intended boundaries. Stick to the defined start and end points unless there’s a compelling reason to adjust them7.
Overlapping Boundaries: Ensure that processes don’t overlap unnecessarily, which can create confusion about ownership and accountability.
Ignoring Interfaces: While focusing on boundaries, don’t neglect to document key interactions and handoffs with other processes. These interfaces are often sources of risk or inefficiency.

Conclusion

Defining process boundaries is a foundational step in business process mapping and analysis. It provides the clarity needed to manage, measure, and improve processes effectively. By following a structured approach-clarifying purpose, identifying inputs and outputs, engaging stakeholders, and validating your work-you set the stage for successful process optimization and organizational growth. Remember: a well-bounded process is a manageable process, and clarity at the boundaries is the first step toward operational excellence.

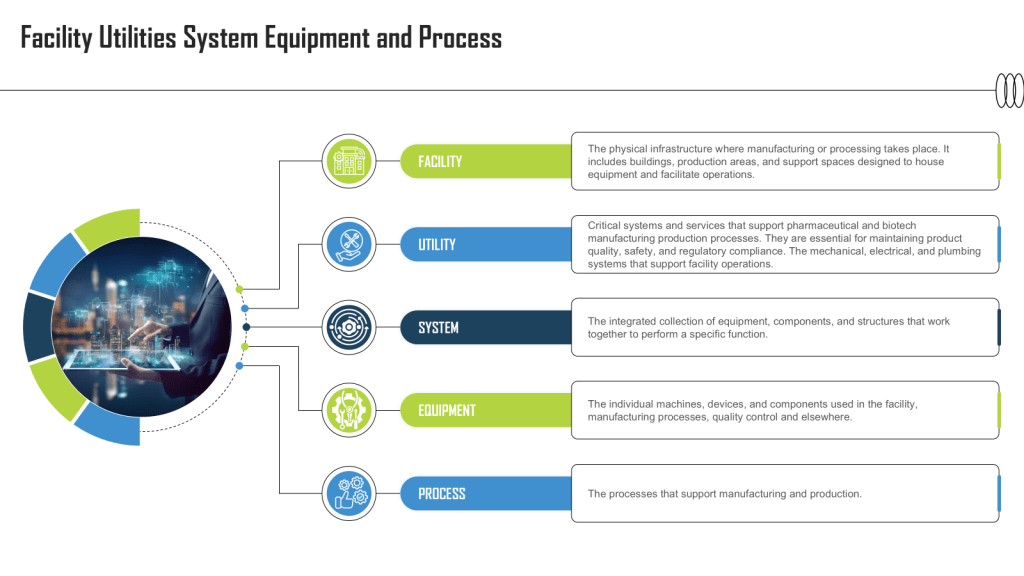

FUSE and FUSE(P) – Definitions

I’ve been utilizing a few acronyms in a lazy way, and it is important to define them moving forward.

The acronyms FUSE stands for Facility Utility System Equipment; and FUSE(P) adds Process. This framework is used to describe and manage critical components of systems in facilities, particularly in industrial and pharmaceutical manufacturing settings. Here’s a breakdown of its elements:

Facility

This refers to the physical infrastructure where manufacturing or processing takes place. It includes buildings, production areas, and support spaces designed to house equipment and facilitate operations.

Utility Systems

Utilities are critical systems and services that support pharmaceutical and biotech manufacturing production processes. They are essential for maintaining product quality, safety, and regulatory compliance. The mechanical, electrical, and plumbing systems that support facility operations. Key utility systems include:

Heating, Ventilation, and Air Conditioning (HVAC)
Electrical distribution
Water systems (purified, process, and domestic)
Compressed air and gas systems
Waste management systems

System

In this context, a system refers to the integrated collection of equipment, components, and structures that work together to perform a specific function.

Equipment

This encompasses the individual machines, devices, and components used in the facility, manufacturing processes, quality control and elsewhere. Examples include mixing tanks, filling machines, packaging equipment, and quality control instruments

Process

This element refers to the manufacturing or production processes that the facility and its utility systems support. It includes:

Production workflows
Environmental control
Cleaning
Computer systems for managing manufacturing and operational processes:

The FUSE(P) framework emphasizes the interconnected nature of these elements and their collective impact on product quality, safety, and operational efficiency. It guides the design, implementation, and management of facility utility systems to ensure they meet Good Manufacturing Practice (GMP) standards and support reliable production processes.

Process Mapping to Process Modeling – The Next Step

In the last two posts (here and here) I’ve been talking about how process mapping is a valuable set of techniques to create a visual representation of the processes within an organization. Fundamental tools, every quality professional should be fluent in them.

The next level of maturity is process modeling which involves creating a digital representation of a process that can be analyzed, simulated, and optimized. Way more comprehensive, and frankly, very very hard to do and maintain.

Process Map	Process Model	Why is this Important?
Notation ambiguous	Standardized notation convention	Standardized notation conventions for process modeling, such as Business Process Model and Notation (BPMN), drive clarity, consistency, communication and process improvements.
Precision usually lacking	As precise as needed	Precision drives model accuracy and effectiveness. Too often process maps are all over the place.
Icons (representing process components made up or loosely defined	Icons are objectively defined and standardized	The use of common modeling conventions ensures that all process creators represent models consistently, regardless of who in the organization created them.
Relationship of icons portrayed visually	Icon relationships definite and explained in annotations, process model glossary, and process narratives	Reducing ambiguity, improving standardization and easing knowledge transfer are the whole goal here. And frankly, the average process map can fall really short.
Limited to portrayal of simple ideas	Can depict appropriate complexity	We need to strive to represent complex workflows in a visually comprehensible manner, striking a balance between detail and clarity. The ability to have scalable detail cannot be undersold.
One-time snapshot	Can grow, evolve, mature	How many times have you sat down to a project and started fresh with a process map? Enough said.
May be created with simple drawing tools	Created with a tool appropriate to the need	The right tool for the right job
Difficult to use for the simplest manual simulations	May provide manual or automated process simulation	In w world of more and more automation, being able to do a good process simulation is critical.
Difficult to link with related diagram or map	Vertical and horizontal linking, showing relationships among processes and different process levels	Processes don’t stand along, they are interconnected in a variety of ways. Being able to move up and down in detail and across the process family is great for diagnosing problems.
Uses simple file storage with no inherent relationships	Uses a repository of related models within a BPM system	It is fairly common to do process maps and keep them separate, maybe in an SOP, but more often in a dozen different, unconnected places, making it difficult to put your hands on it. Process modeling maturity moves us towards a library approach, with drives knowledge management.
Appropriate for quick capture of ideas	Appropriate for any level of process capture, analysis and design	Processes are living and breathing, our tools should take that into account.

This is all about moving to a process repository and away from a document mindset. I think it is a great shame that the eQMS players don’t consider this part of their core mission. This is because most quality units don’t see this as part of their core mission. We as quality leaders should be seeing process management as critical for future success. This is all about profound knowledge and utilizing it to drive true improvements.

Process Mapping as a Scaling Solution (part 2)

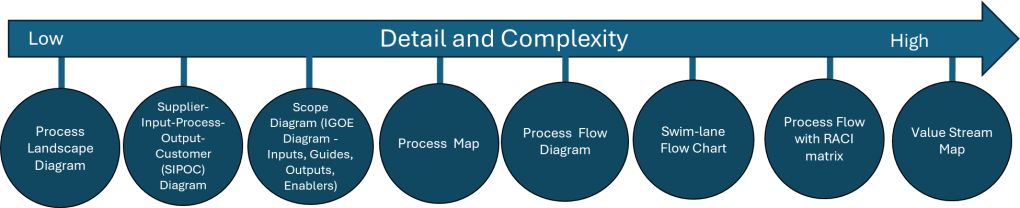

Continuing our look a process mapping tools.

Process Flow Diagram

A process flow diagram is a visual representation of the steps in a process, showing the sequence of activities from start to finish. Using simple shapes and arrows, it maps out how work flows through your system, highlighting decision points, inputs, outputs, and the relationships between different steps. When most people think process map they really mean process flow.

When to Use Process Flow Diagrams

Process flow diagrams shine in various scenarios:

Analyzing existing processes: They help identify inefficiencies, bottlenecks, and redundancies in current workflows.
Designing new processes: When creating new procedures, flow diagrams provide a clear blueprint for implementation.
Training and onboarding: They serve as excellent visual aids for explaining processes to new team members.
Continuous improvement initiatives: Flow diagrams facilitate discussions about potential enhancements and streamlining opportunities.
Compliance and auditing: They offer a standardized way to document processes for regulatory purposes.

Creating Effective Process Flow Diagrams

To make the most of your diagrams:

Start with the big picture: Begin by outlining the major steps before diving into details.

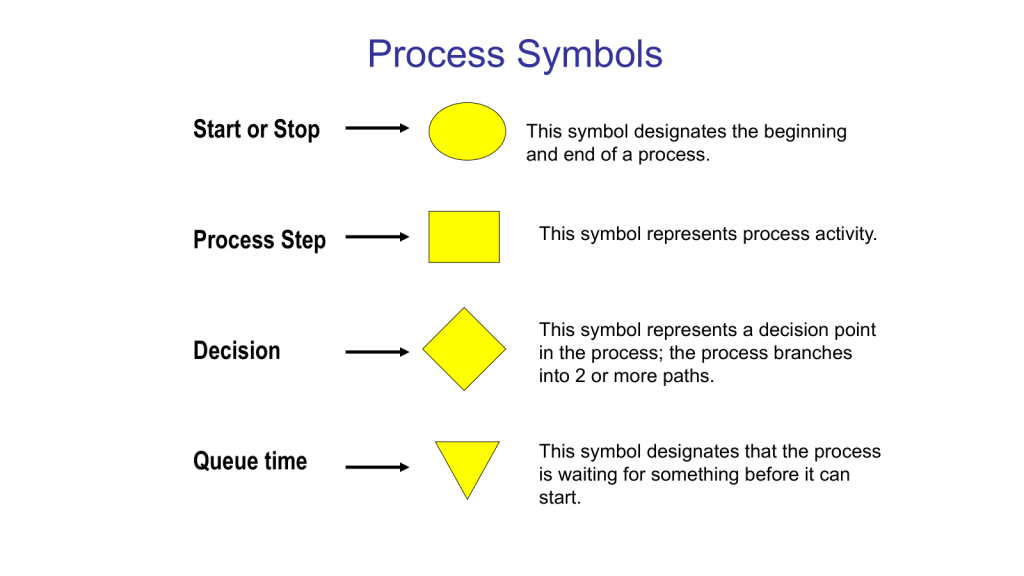

Use standard symbols: Stick to commonly recognized shapes (e.g., rectangles for activities, diamonds for decisions) to ensure clarity.
Keep it simple: Avoid cluttering your diagram with too much information. Focus on the key steps and decision points.
Involve the right people: Collaborate with those who actually perform the process to ensure accuracy.
Review and refine: Regularly update your diagrams as processes evolve.

Benefits of Using Process Flow Diagrams

Process flow diagrams are truly one of the core quality tools. With them we can:

Improve communication: They provide a common visual language for discussing processes across teams.
Enhance efficiency: By clearly mapping out steps, you can more easily identify areas for optimization.
Better decision-making: Flow diagrams help managers understand the implications of process changes.
Increase standardization: They promote consistency in how tasks are performed across the organization.

Process flow diagrams are more than just pretty pictures – they’re powerful tools for understanding, improving, and communicating about your business processes. By incorporating them into your workflow analysis and design efforts, you’ll be taking a significant step towards operational excellence.

This is the level of process mapping that usually sits at the heart of the SOP.

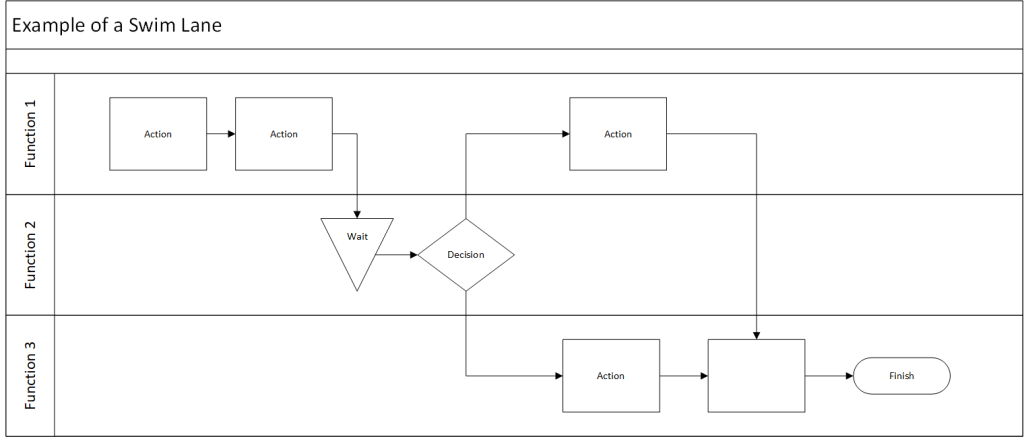

Swim-Lane Flowchart

A swim lane flowchart, also known as a swim lane diagram or cross-functional flowchart, is a visual representation of a process that separates activities into distinct lanes. Each lane typically represents a different department, team, or individual responsible for a set of actions within the process.

Key Benefits of Swim Lane Flowcharts

Clear Responsibility Assignment: By dividing the process into lanes, it’s immediately clear which team or individual is responsible for each step.
Improved Communication: These diagrams provide a common visual language for discussing processes across departments.
Identify Handoffs and Bottlenecks: Easily spot where work passes between teams and where delays might occur.
Process Optimization: Visualizing the entire process helps identify redundancies and opportunities for streamlining.
Onboarding and Training: New team members can quickly grasp complex processes and their role within them.

Creating an Effective Swim Lane Flowchart

To make the most of this tool:

Define the Process Scope: Clearly identify the start and end points of the process you’re mapping.
Identify Participants: Determine which departments or roles will have their own lanes.
Map the Process: Use standard flowchart symbols to represent steps, decisions, and document flows.
Show Handoffs: Clearly indicate where work passes from one lane to another.
Review and Refine: Collaborate with stakeholders to ensure accuracy and identify improvement opportunities.

Data Maps are an example of a swim lane flow chart.

Process Flow with RACI Matrix

Here’s a blog post on process flow with RACI matrix:

Mastering Process Management: Combining Process Flow with RACI Matrix

This tool merges two powerful tools stand out for their ability to clarify complex workflows: the process flow diagram and the RACI matrix. When combined, these tools create a comprehensive view of not just how a process unfolds, but also who’s involved at each step. Let’s dive into this dynamic duo and explore how they can revolutionize your process management.

Process Flow Diagram: This visual representation maps out the sequence of steps in a process, showing how work progresses from start to finish.
RACI Matrix: This responsibility assignment chart clarifies the roles people play in each process step:
- Responsible: Who does the work?
- Accountable: Who makes the final decisions?
- Consulted: Who provides input?
- Informed: Who needs to be kept in the loop?

When you combine a process flow with a RACI matrix, you create a comprehensive view of your process that answers two critical questions:

What happens in the process?
Who’s involved at each step?

This integration strives to provide clarity of roles. It becomes immediately clear who’s responsible for each step, reducing confusion and improving accountability. Team members can easily see where they fit into the larger process and who they need to interact with. This should hopefully help balance resources and streamline decision-making. It is a great tool for training.

Creating Your Integrated Diagram

To build your process flow with RACI matrix:

Start with Your Process Flow: Map out the steps of your process using standard flowchart symbols.
Add RACI Information: For each step, indicate the R, A, C, and I roles. This can be done through color-coding, symbols, or additional columns next to each step.
Review and Refine: Collaborate with stakeholders to ensure the diagram accurately reflects both the process and the roles involved.
Use It: Implement the diagram in your operations, referring to it for training, process improvement, and day-to-day management.

Example

Imagine a verification process:

Requirements Gathering (R: Business Analyst, A: Molecule Steward, C: Quality, Engineers, Operations)
Design (R: Engineer, A: Molecule Steward, I: Validation)
Verification (R: Validation A: Quality, C: Engineers, I: Molecule Steward)
Deployment (R: Operations, A: Molecule Steward C: Quality, I: All Stakeholders)

Integrating process flows with RACI matrices creates a powerful tool for process management. It not only shows how work gets done but also clarifies who’s involved every step of the way. This comprehensive view can lead to more efficient operations, clearer communication, and ultimately, better business outcomes.

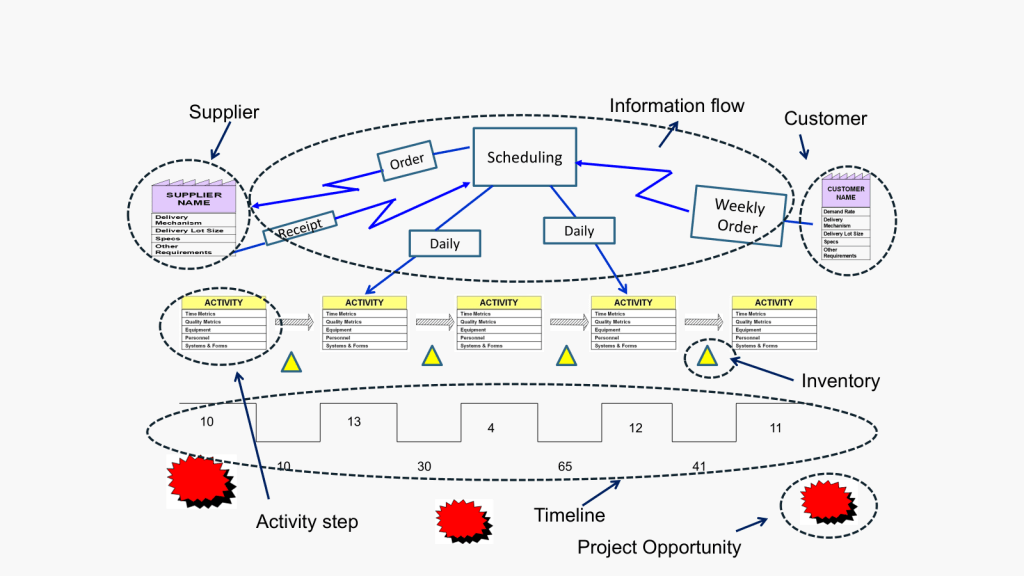

Value Stream Map

Value Stream Mapping (CSM) is a process mapping technique used to analyze, design, and manage the flow of materials and information required to bring a product or service to a customer. It is a visual representation of every step in your process, from the initial order to the final delivery of the product or service.

Coming out of Lean and organization excellence the value stream map is all about identifying waste: VSM helps you spot non-value-adding activities in your processes, allowing you to eliminate them and improve efficiency.

How to Create a Value Stream Map

Create a Current State Map: Document your process as it currently exists, including material and information flows.
Analyze the Current State: Identify areas of waste and inefficiency in your current process.
Design a Future State Map: Envision an improved process that eliminates the identified waste.
Implement Changes: Develop and execute a plan to move from the current state to the future state.
Review and Iterate: Continuously monitor your new process and make further improvements as needed.

Best Practices for Value Stream Mapping

Involve Cross-Functional Teams: Ensure representatives from all relevant departments participate in the mapping process.
Focus on the Customer: Always keep the end customer’s needs in mind when analyzing and improving your processes.
Use Standard Symbols: Adopt a consistent set of symbols to represent different elements of your value stream.
Walk the Process: Physically follow the flow of materials and information to gain a firsthand understanding of your processes.
Measure Key Metrics: Collect data on important metrics like cycle time, lead time, and inventory levels to quantify improvements.
